Multi-Parameter Analyzers

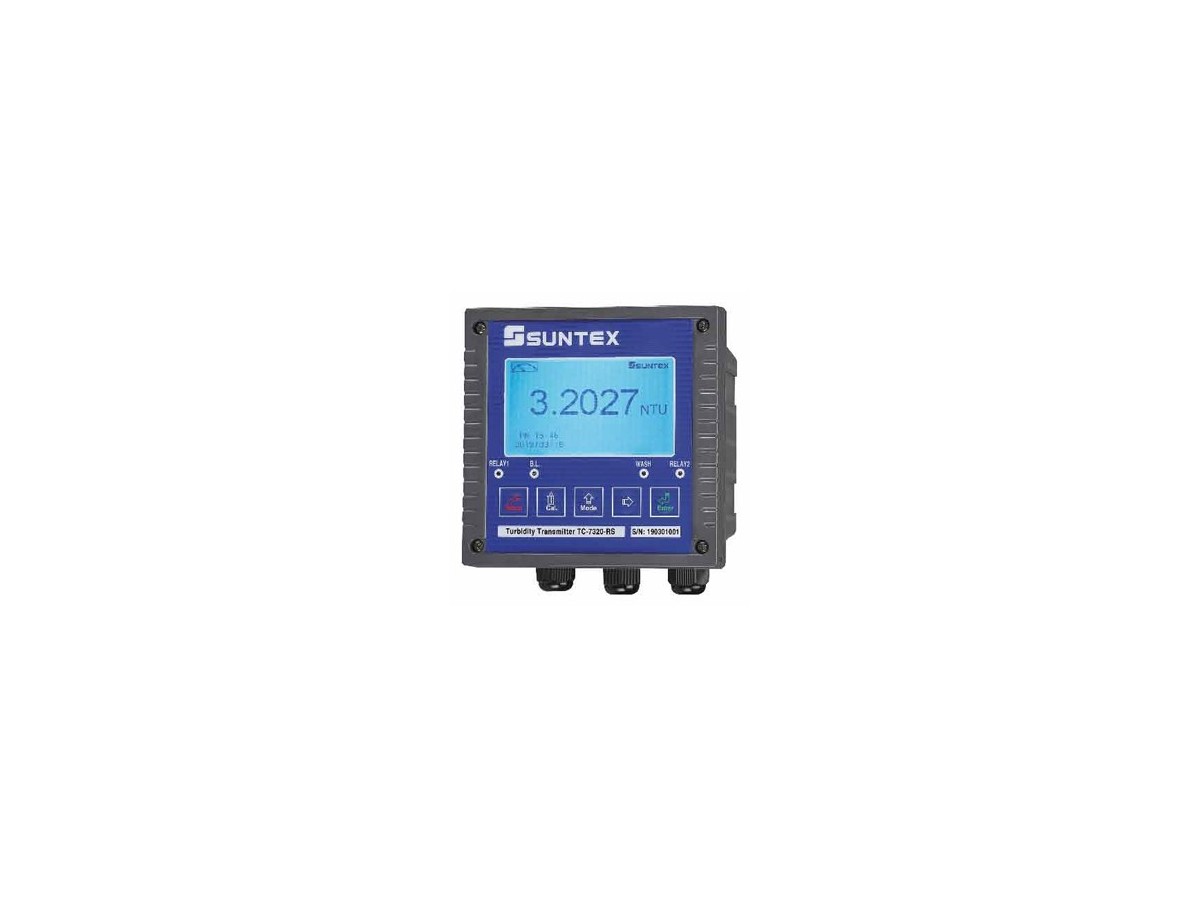

Suntex TC-7200 Microcomputer Turbidity Transmitter
Suntex TC-7200 Microcomputer Turbidity Transmitter. Official Suntex water-quality instrument.
Max flow
—
Max pressure
—
Turndown / accuracy
—
Wetted materials
—
Protection
IP65
Power
100~240VAC wide-range power supply, 50/60Hz
Features
- 144×144 microprocessor turbidity transmitter
- outdoor waterproof; wall/panel/pipe mount
- Large LCD with operating status and special symbol display
- Backlight sensor with automatic and manual backlight settings
- electrode auto-clean contact output
- Two- or three-point calibration with offset correction
- password + key combo for setup/calibration
- RS-485 interface with standard Modbus protocol
- 0/4–20 mA output assignable to turbidity
Specifications
| Brand | Suntex |
| Model | TC-7200 |
| Category | water analyzer |
| Turbidity Range | 0.000～100.00NTU |
| Protection | IP65 |
| Power | 100~240VAC wide-range power supply, 50/60Hz |
| Dimensions | 144mm×144mm×115mm(H×W×D) |
| Analog Output | 0/4~20mA |
| Feature | 144X144 turbidity transmitter |
| Feature | outside waterproof type wall-mounted, panel-mounted, pipe mounting |
| Feature | large LCD, special no. display |
Applications
Materials & media
Ask for wetted-parts details or check the brochure.
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
| Analog Output | 0/4~20mA |
Models & specs
| Model | Notes | |
| TC-7200 | standard analog output type |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
Downloads
