Hydraulic Metering Pumps

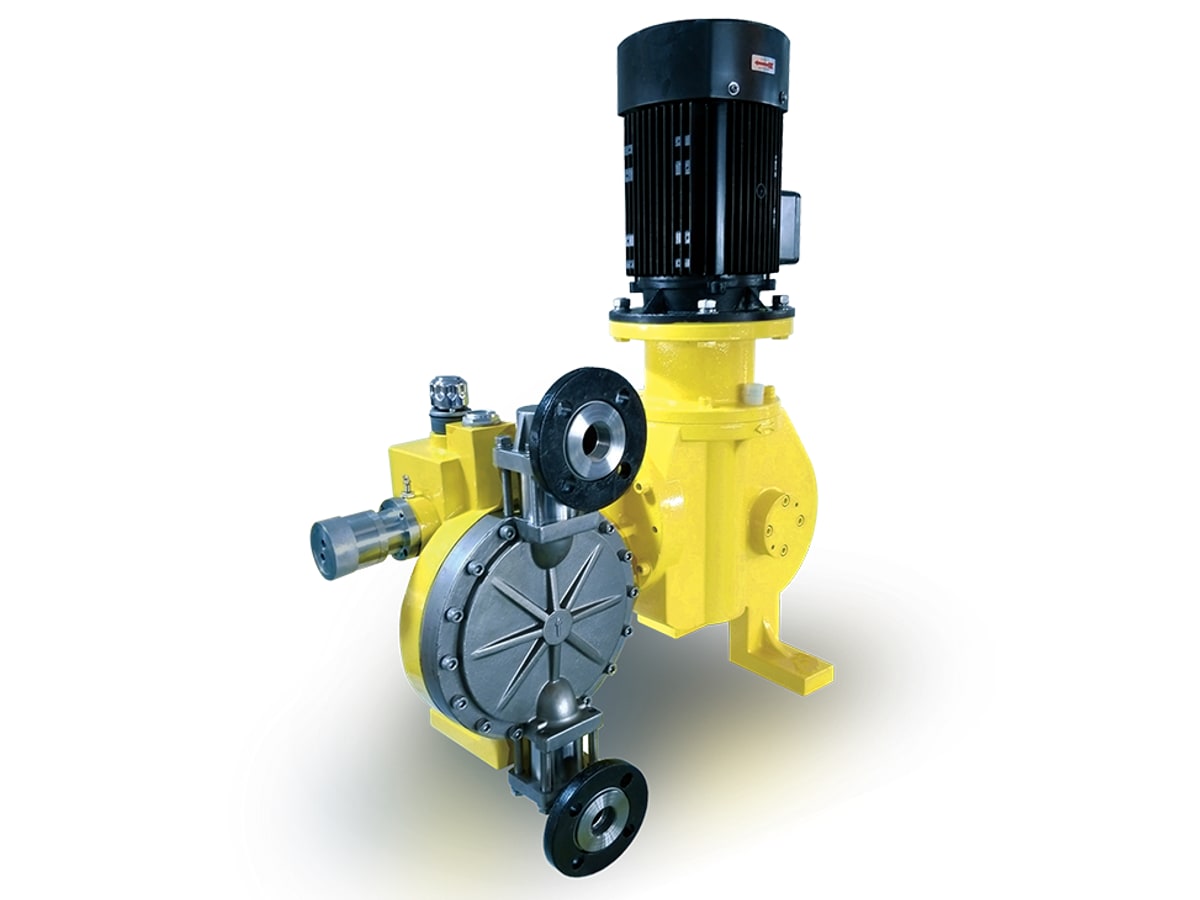

CNP RZ Hydraulic Diaphragm Metering Pump
CNP RZ hydraulic. Max ≈3065 L/h, 90 bar.
Max flow
3065 L/h
Max pressure
90 bar
Turndown / accuracy
—
Wetted materials
—
Protection
—
Power
—
Features
- Worm gear
- ≈3065 L/h / 90 bar
- Built-in relief
- Optional rupture alarm
Specifications
| Max flow | 3065 L/h |
| Max pressure | 90 bar |
| Brand | CNP |
Applications
Materials & media
Ask for wetted-parts details or check the brochure.
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
Control options are listed in notes or confirmed on inquiry.
Models & specs
| Model | Flow | Pressure | Power | Notes | |
| RZ3000 | 3065 L/h | 8 bar | 3.0/2.2 kW | plunger φ95; 2.2kW approx. 3065 L/h @6 bar | |
| RZ2700 | 2770 L/h | 9 bar | 3.0/2.2 kW | plunger φ90 | |
| RZ2100 | 2170 L/h | 12 bar | 3.0/2.2 kW | plunger φ80 | |
| RZ1800 | 1810 L/h | 15 bar | 3.0/2.2 kW | plunger φ90 | |
| RZ1400 | 1405 L/h | 19 bar | 3.0/2.2 kW | plunger φ80 | |
| RZ1100 | 1135 L/h | 23 bar | 3.0/2.2 kW | plunger φ72 | |
| RZ800 | 815 L/h | 30 bar | 3.0/2.2 kW | plunger φ60 | |
| RZ500 | 527 L/h | 48 bar | 3.0/2.2 kW | plunger φ50 | |
| RZ400 | 425 L/h | 65 bar | 3.0/2.2 kW | plunger φ36.5 | |
| RZ270 | 280 L/h | 90 bar | 3.0/2.2 kW | plunger φ36.5; 3.0kW up to approx. 90 bar |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
