Mechanical Diaphragm Pumps

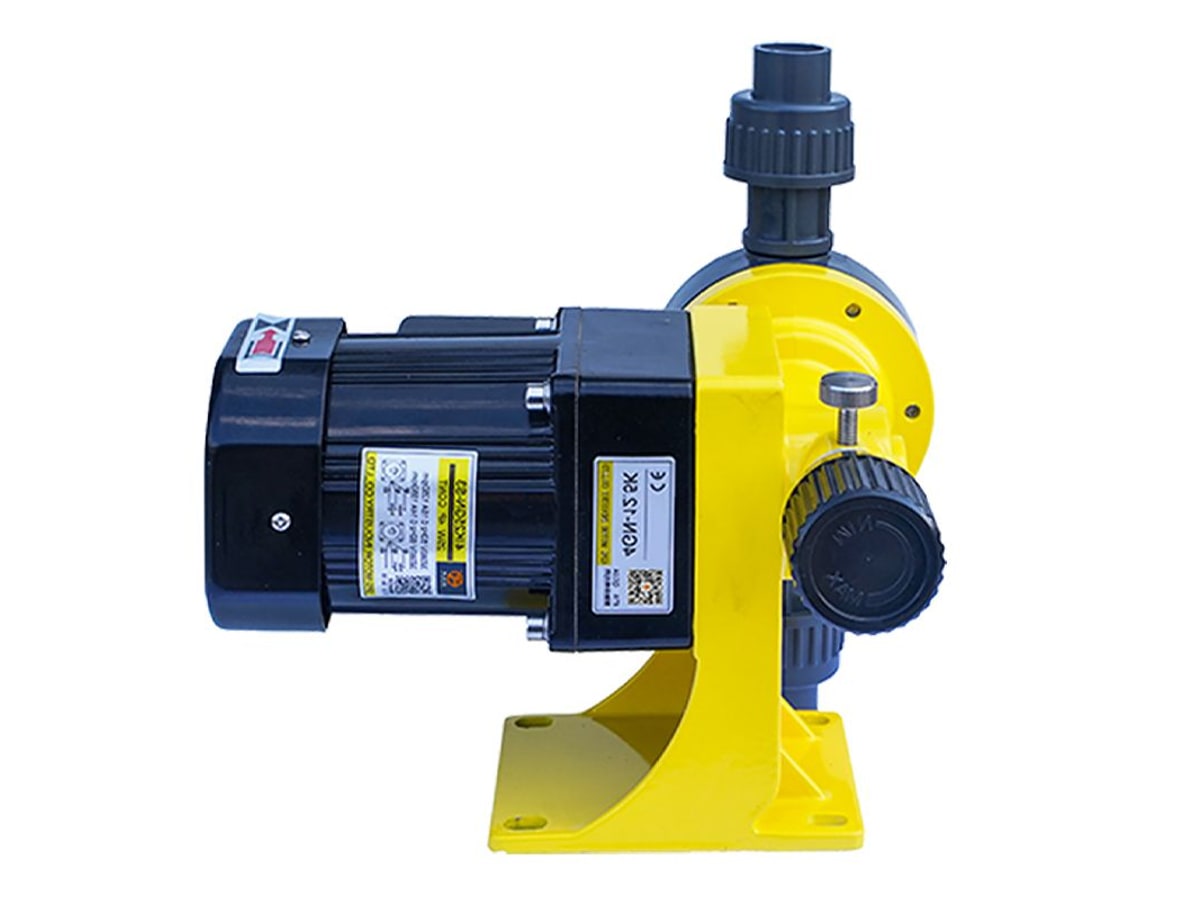

GEMO JWM-B Diaphragm Metering Pump
GEMO metering pump. Accuracy ≤±1%
Max flow
6.5–150 L/h
Max pressure
1 MPa
Turndown / accuracy
≤±1%
Wetted materials
PVC / PVDF / 316L
Protection
—
Power
—
Features
- High metering accuracy ≤±1%
- Corrosion & abrasion resistant
- Mechanical diaphragm reciprocating drive
- Wetted materials: PVC / PVDF / 304 / 316L
Specifications
| Accuracy | ≤±1% |
| Wetted materials | PVC / PVDF / 316L |
| Brand | GEMO |
| Flow range | 6.5–150 L/h |
| Max pressure | 1 MPa |
Applications
Materials & media
| Wetted materials | PVC / PVDF / 316L |
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
Control options are listed in notes or confirmed on inquiry.
Models & specs
| Model | Flow | Pressure | Notes | |
| JWM-B6.5/1 | 6.5 L/h | 1 MPa | power 0.06kW | |
| JWM-B12/1 | 12 L/h | 1 MPa | power 0.06kW | |
| JWM-B24/1 | 24 L/h | 1 MPa | power 0.06kW | |
| JWM-B32/1 | 32 L/h | 1 MPa | power 0.06kW | |
| JWM-B42/1 | 42 L/h | 1 MPa | power 0.06kW | |
| JWM-B60/1 | 60 L/h | 1 MPa | power 0.09kW | |
| JWM-B60/0.6 | 60 L/h | 1 MPa | power 0.06kW | |
| JWM-B80/0.5 | 80 L/h | 0.5 MPa | power 0.09kW | |
| JWM-B100/0.5 | 100 L/h | 0.4 MPa | power 0.09kW | |
| JWM-B120/0.5 | 120 L/h | 0.4 MPa | power 0.09kW | |
| JWM-B150/0.4 | 150 L/h | 0.4 MPa | inlet DN15; outlet DN15 |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
Downloads
