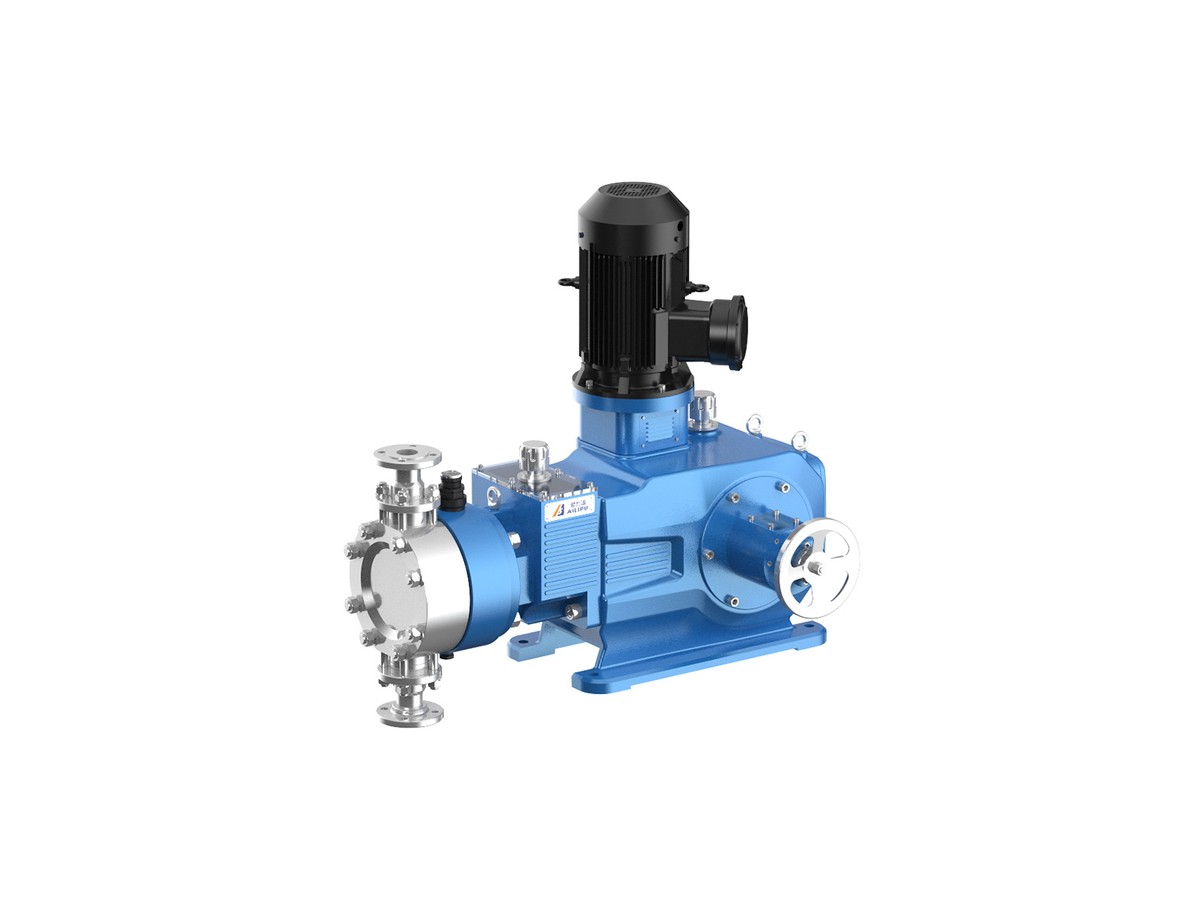

Ailipu JYM25 Hydraulic Diaphragm Metering Pump
JYM25 hydraulic diaphragm pump. Flow ~160 – 20000 L/h, pressure ~0.4 – 40 MPa. Built-in hydraulic protection; optional double diaphragm.
Max flow
160 – 20000 L/h
Max pressure
0.4 – 40 MPa
Turndown / accuracy
stroke 10%–100% accuracy ±1%
Wetted materials
SS304 / SS316L / PVC / PTFE etc.
Protection
—
Power
—
Best for: verifying flow/pressure and control interfaces against your dosing duty (Metering Pump).
Confirm chemical compatibility and install constraints before ordering — inquire for help.
Features
- Hydraulically driven diaphragm
- Built-in relief/protection
- Optional rupture alarm
- For corrosive/hazardous media
Specifications
| Type | hydraulic diaphragm metering pump |
| Flow range | 160 – 20000 L/h |
| Pressure range | 0.4 – 40 MPa |
| Accuracy | stroke 10%–100% accuracy ±1% |
| Suction lift | ≤4.5 m (hydraulic diaphragm) |
| Features | inside hydraulic; optional double diaphragm alarm |
| Wetted materials | SS304 / SS316L / PVC / PTFE etc. |
| Brand | Ailipu |
Applications
Oil & petrochemical
Chemical
Power
Nuclear
Mining
Food & pharma
Materials & media
| Wetted materials | SS304 / SS316L / PVC / PTFE etc. |
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
Control options are listed in notes or confirmed on inquiry.
Models & specs
| Model | Flow | Pressure | Power | Notes | |
| JYM25-160/40 | 160 L/h | 40 MPa | 7.5 kW | plunger φ25 mm; stroke 80 mm; speed 96 spm; connection DN20; weight approx. 540 kg | |
| JYM25-250/32 | 250 L/h | 32 MPa | 11 kW | plunger φ25 mm; stroke 80 mm; speed 120 spm; connection DN20; weight approx. 540 kg | |
| JYM25-320/32 | 320 L/h | 32 MPa | 11 kW | plunger φ32 mm; stroke 80 mm; speed 96 spm; connection DN20; weight approx. 540 kg | |
| JYM25-320/16 | 320 L/h | 16 MPa | 7.5 kW | plunger φ32 mm; stroke 80 mm; speed 96 spm; connection DN20; weight approx. 540 kg | |
| JYM25-400/25 | 400 L/h | 25 MPa | 11 kW | plunger φ32 mm; stroke 80 mm; speed 120 spm; connection DN20; weight approx. 540 kg | |
| JYM25-400/12.5 | 400 L/h | 12.5 MPa | 7.5 kW | plunger φ32 mm; stroke 80 mm; speed 120 spm; connection DN20; weight approx. 540 kg | |
| JYM25-500/25 | 500 L/h | 25 MPa | 15 kW | plunger φ32 mm; stroke 80 mm; speed 147 spm; connection DN25; weight approx. 540 kg | |
| JYM25-500/20 | 500 L/h | 20 MPa | 11 kW | plunger φ40 mm; stroke 80 mm; speed 96 spm; connection DN25; weight approx. 540 kg | |
| JYM25-500/10 | 500 L/h | 10 MPa | 7.5 kW | plunger φ40 mm; stroke 80 mm; speed 96 spm; connection DN25; weight approx. 540 kg | |
| JYM25-640/16 | 640 L/h | 16 MPa | 11 kW | plunger φ40 mm; stroke 80 mm; speed 120 spm; connection DN25; weight approx. 540 kg | |
| JYM25-640/8 | 640 L/h | 8 MPa | 7.5 kW | plunger φ40 mm; stroke 80 mm; speed 120 spm; connection DN25; weight approx. 540 kg | |
| JYM25-800/16 | 800 L/h | 16 MPa | 15 kW | plunger φ40 mm; stroke 80 mm; speed 147 spm; connection DN25; weight approx. 540 kg | |
| JYM25-800/12.5 | 800 L/h | 12.5 MPa | 11 kW | plunger φ50 mm; stroke 80 mm; speed 96 spm; connection DN25; weight approx. 540 kg | |
| JYM25-800/6.3 | 800 L/h | 6.3 MPa | 7.5 kW | plunger φ50 mm; stroke 80 mm; speed 96 spm; connection DN25; weight approx. 540 kg | |
| JYM25-1000/10 | 1000 L/h | 10 MPa | 11 kW | plunger φ50 mm; stroke 80 mm; speed 120 spm; connection DN25; weight approx. 540 kg | |
| JYM25-1000/5 | 1000 L/h | 5 MPa | 7.5 kW | plunger φ50 mm; stroke 80 mm; speed 120 spm; connection DN25; weight approx. 540 kg | |
| JYM25-1260/10 | 1260 L/h | 10 MPa | 15 kW | plunger φ50 mm; stroke 80 mm; speed 147 spm; connection DN32; weight approx. 540 kg | |
| JYM25-1260/8 | 1260 L/h | 8 MPa | 11 kW | plunger φ63 mm; stroke 80 mm; speed 96 spm; connection DN32; weight approx. 540 kg | |
| JYM25-1260/4 | 1260 L/h | 4 MPa | 7.5 kW | plunger φ63 mm; stroke 80 mm; speed 96 spm; connection DN32; weight approx. 540 kg | |
| JYM25-1600/6.3 | 1600 L/h | 6.3 MPa | 11 kW | plunger φ63 mm; stroke 80 mm; speed 120 spm; connection DN40; weight approx. 540 kg | |
| JYM25-1600/3.2 | 1600 L/h | 3.2 MPa | 7.5 kW | plunger φ63 mm; stroke 80 mm; speed 120 spm; connection DN40; weight approx. 540 kg | |
| JYM25-2000/8 | 2000 L/h | 8 MPa | 15 kW | plunger φ63 mm; stroke 80 mm; speed 150 spm; connection DN40; weight approx. 540 kg | |
| JYM25-2000/5 | 2000 L/h | 5 MPa | 11 kW | plunger φ80 mm; stroke 80 mm; speed 96 spm; connection DN40; weight approx. 540 kg | |
| JYM25-2000/2.5 | 2000 L/h | 2.5 MPa | 7.5 kW | plunger φ80 mm; stroke 80 mm; speed 96 spm; connection DN40; weight approx. 540 kg | |
| JYM25-2000/4 | 2000 L/h | 4 MPa | 11 kW | plunger φ80 mm; stroke 80 mm; speed 120 spm; connection DN40; weight approx. 540 kg | |
| JYM25-2500/2 | 2500 L/h | 2 MPa | 7.5 kW | plunger φ80 mm; stroke 80 mm; speed 120 spm; connection DN40; weight approx. 540 kg | |
| JYM25-3200/5 | 3200 L/h | 5 MPa | 15 kW | plunger φ80 mm; stroke 80 mm; speed 150 spm; connection DN50; weight approx. 540 kg | |
| JYM25-3200/3.2 | 3200 L/h | 3.2 MPa | 11 kW | plunger φ100 mm; stroke 80 mm; speed 96 spm; connection DN50; weight approx. 540 kg | |
| JYM25-3200/1.6 | 3200 L/h | 1.6 MPa | 7.5 kW | plunger φ100 mm; stroke 80 mm; speed 96 spm; connection DN50; weight approx. 540 kg | |
| JYM25-4000/2.5 | 4000 L/h | 2.5 MPa | 11 kW | plunger φ100 mm; stroke 80 mm; speed 120 spm; connection DN50; weight approx. 540 kg | |
| JYM25-4000/1.3 | 4000 L/h | 1.3 MPa | 7.5 kW | plunger φ100 mm; stroke 80 mm; speed 120 spm; connection DN50; weight approx. 540 kg | |
| JYM25-5000/3.2 | 5000 L/h | 3.2 MPa | 15 kW | plunger φ100 mm; stroke 80 mm; speed 150 spm; connection DN50; weight approx. 540 kg | |
| JYM25-5000/2 | 5000 L/h | 2 MPa | 11 kW | plunger φ125 mm; stroke 80 mm; speed 96 spm; connection DN50; weight approx. 540 kg | |
| JYM25-5000/1 | 5000 L/h | 1 MPa | 7.5 kW | plunger φ125 mm; stroke 80 mm; speed 96 spm; connection DN50; weight approx. 540 kg | |
| JYM25-6300/1.6 | 6300 L/h | 1.6 MPa | 11 kW | plunger φ125 mm; stroke 80 mm; speed 120 spm; connection DN65; weight approx. 540 kg | |
| JYM25-6300/0.8 | 6300 L/h | 0.8 MPa | 7.5 kW | plunger φ125 mm; stroke 80 mm; speed 120 spm; connection DN65; weight approx. 540 kg | |
| JYM25-8000/2 | 8000 L/h | 2 MPa | 15 kW | plunger φ125 mm; stroke 80 mm; speed 150 spm; connection DN65; weight approx. 540 kg | |
| JYM25-8000/1.25 | 8000 L/h | 1.25 MPa | 11 kW | plunger φ140 mm; stroke 80 mm; speed 120 spm; connection DN65; weight approx. 540 kg | |
| JYM25-8000/0.63 | 8000 L/h | 0.63 MPa | 7.5 kW | plunger φ140 mm; stroke 80 mm; speed 120 spm; connection DN65; weight approx. 540 kg | |
| JYM25-10000/1.6 | 10000 L/h | 1.6 MPa | 15 kW | plunger φ140 mm; stroke 80 mm; speed 150 spm; connection DN80; weight approx. 540 kg | |
| JYM25-10000/1.2 | 10000 L/h | 1.2 MPa | 15 kW | plunger φ160 mm; stroke 80 mm; speed 120 spm; connection DN80; weight approx. 540 kg | |
| JYM25-10000/1.0 | 10000 L/h | 1.0 MPa | 11 kW | plunger φ160 mm; stroke 80 mm; speed 120 spm; connection DN80; weight approx. 540 kg | |
| JYM25-10000/0.5 | 10000 L/h | 0.5 MPa | 7.5 kW | plunger φ160 mm; stroke 80 mm; speed 120 spm; connection DN80; weight approx. 540 kg | |
| JYM25-12500/1.2 | 12500 L/h | 1.2 MPa | 15 kW | plunger φ160 mm; stroke 80 mm; speed 150 spm; connection DN100; weight approx. 540 kg | |
| JYM25-12500/0.8 | 12500 L/h | 0.8 MPa | 11 kW | plunger φ180 mm; stroke 80 mm; speed 120 spm; connection DN100; weight approx. 540 kg | |
| JYM25-12500/0.4 | 12500 L/h | 0.4 MPa | 7.5 kW | plunger φ180 mm; stroke 80 mm; speed 120 spm; connection DN100; weight approx. 540 kg | |
| JYM25-16000/0.8 | 16000 L/h | 0.8 MPa | 15 kW | plunger φ195 mm; stroke 80 mm; speed 120 spm; connection DN100; weight approx. 540 kg | |
| JYM25-16000/0.4 | 16000 L/h | 0.4 MPa | 7.5 kW | plunger φ195 mm; stroke 80 mm; speed 120 spm; connection DN100; weight approx. 540 kg | |
| JYM25-20000/0.8 | 20000 L/h | 0.8 MPa | 15 kW | plunger φ195 mm; stroke 80 mm; speed 150 spm; connection DN100; weight approx. 540 kg |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
Downloads
Brochures / manuals / CAD / certificates are being added. Need files now? Inquire to request。
Related / accessories
Pump

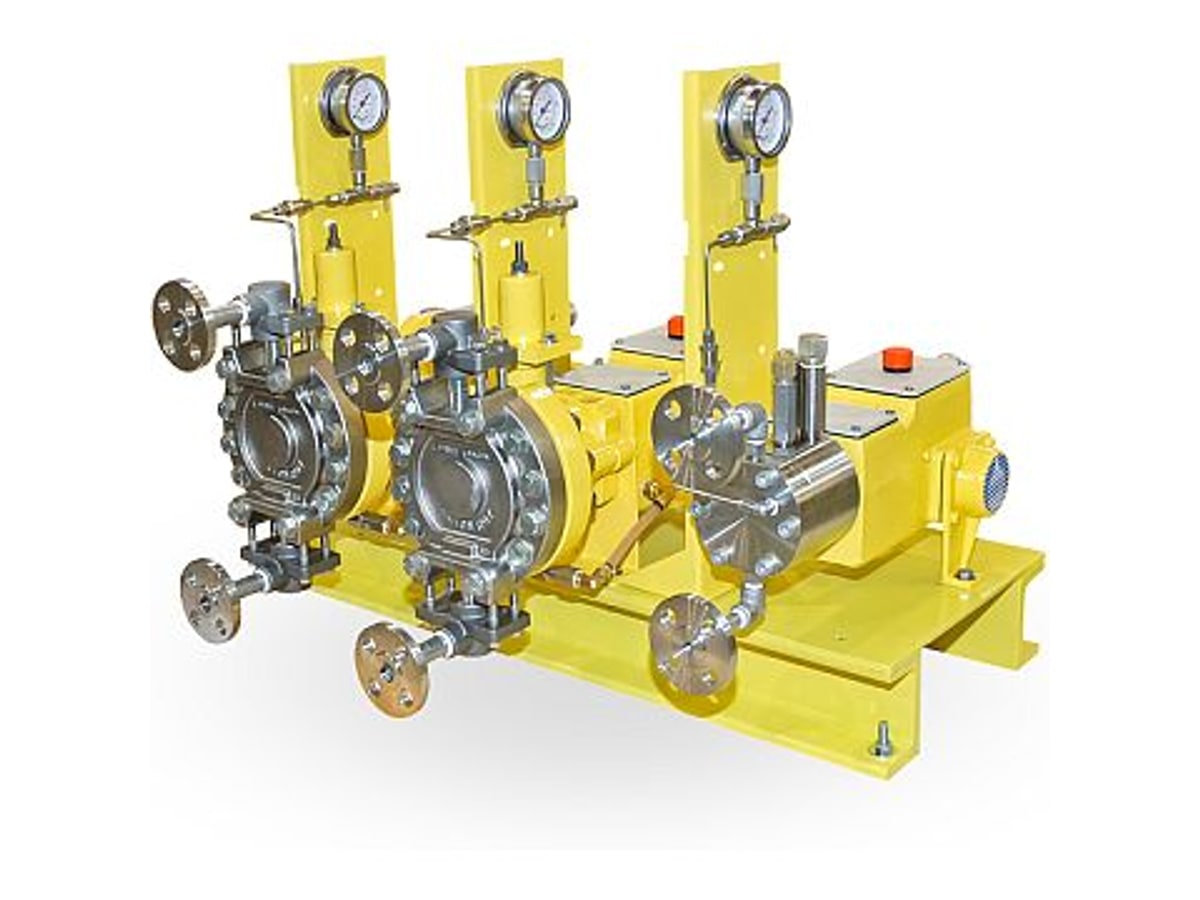

Milton Roy Milroyal B Series High-Performance Hydraulic Diaphragm Metering Pump
Pump
Doseuro Type SDI Positive Return Sandwich Hydraulic Diaphragm Pump
Pump
Milton Roy MAXROY Series Industrial Hydraulic Diaphragm Metering Pump
Pump

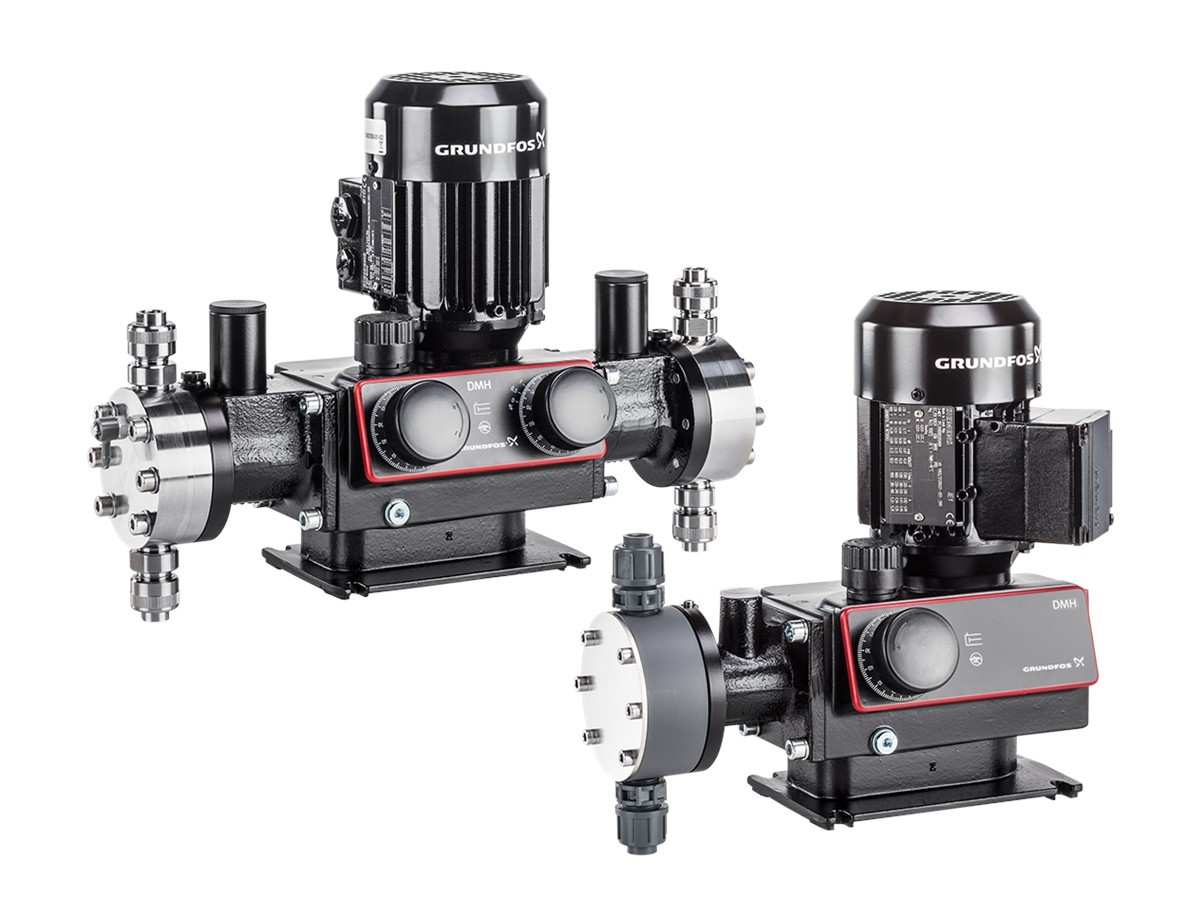

Grundfos DMH Hydraulic Diaphragm Dosing Pump
Pump

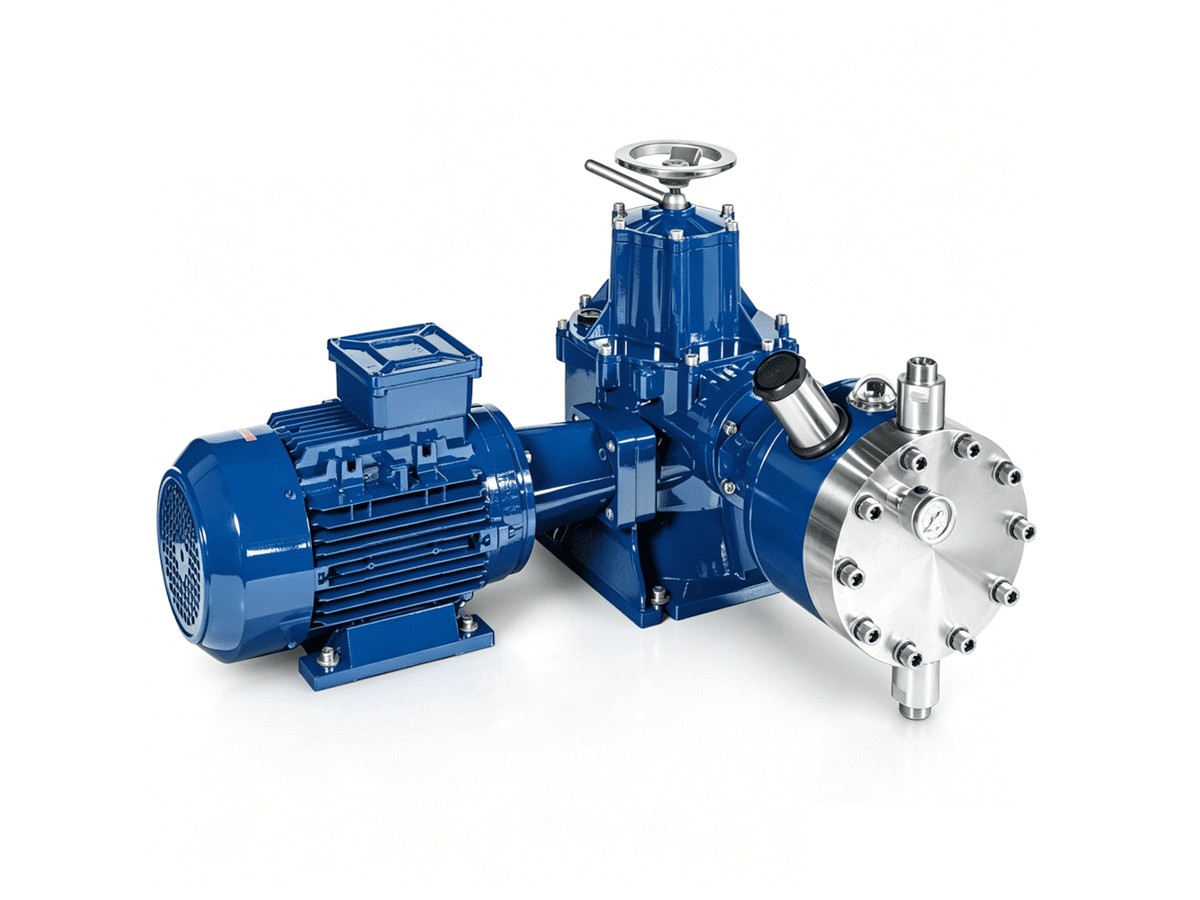

Doseuro Type MR I High Pressure Sandwich Hydraulic Diaphragm Pump
