Peristaltic Pumps

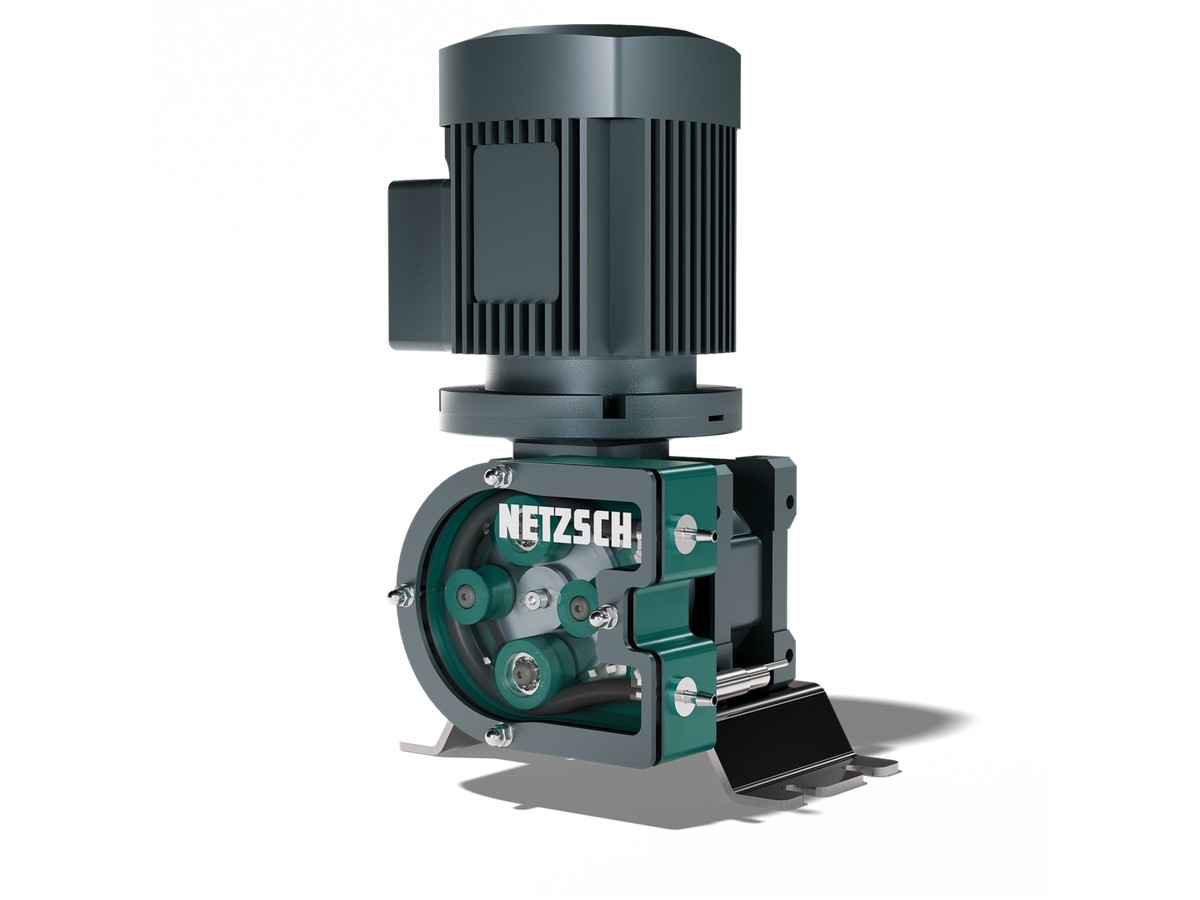

NETZSCH PERIPRO® Tube Pump
NETZSCH PERIPRO® tube peristaltic dosing pump (not diaphragm metering). Continuous 24/7 hermetic design. Page table TI 4/0.01: 4 bar, 0.025 m³/h, 100 rpm. Brochure: suction to ~8 m.w.c., viscous media to ~10,000 cPs, dosing accuracy ±1%.
Max flow
TI 4/0.01: max. approx. 0.025 m³/h
Max pressure
4 bar(TI 4/0.01)
Turndown / accuracy
±1%
Wetted materials
standard TVP, optional PVC
Protection
—
Power
—
Features
- Built for continuous dosing duty with simple robust design
- Hermetic housing; leakage sensor for tube rupture
- Paired roller guides for smooth tube guidance
- Tube is the main wear part; TVP standard, PVC optional
- Large rollers minimise friction and energy use
Specifications
| Capacity (listed size) | TI 4/0.01: max. approx. 0.025 m³/h |
| Max pressure | 4 bar(TI 4/0.01) |
| Speed | 100 rpm(TI 4/0.01) |
| Suction | max. approx. 8 m.w.c. |
| Viscosity | max. approx. 10,000 cPs |
| Dosing accuracy | ±1% |
| Tube material | standard TVP, optional PVC |
| Pump type | tube type (peristaltic)— non-diaphragm |
Applications
Materials & media
| Tube material | standard TVP, optional PVC |
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
Control options are listed in notes or confirmed on inquiry.
Models & specs
| Model | Notes | |
| TI 4/0.01 | 4 bar / 0.025 m³/h / 100 rpm |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
Downloads
Related / accessories

Pump
LMI RTL Series Peristaltic Metering Pumps

Pump

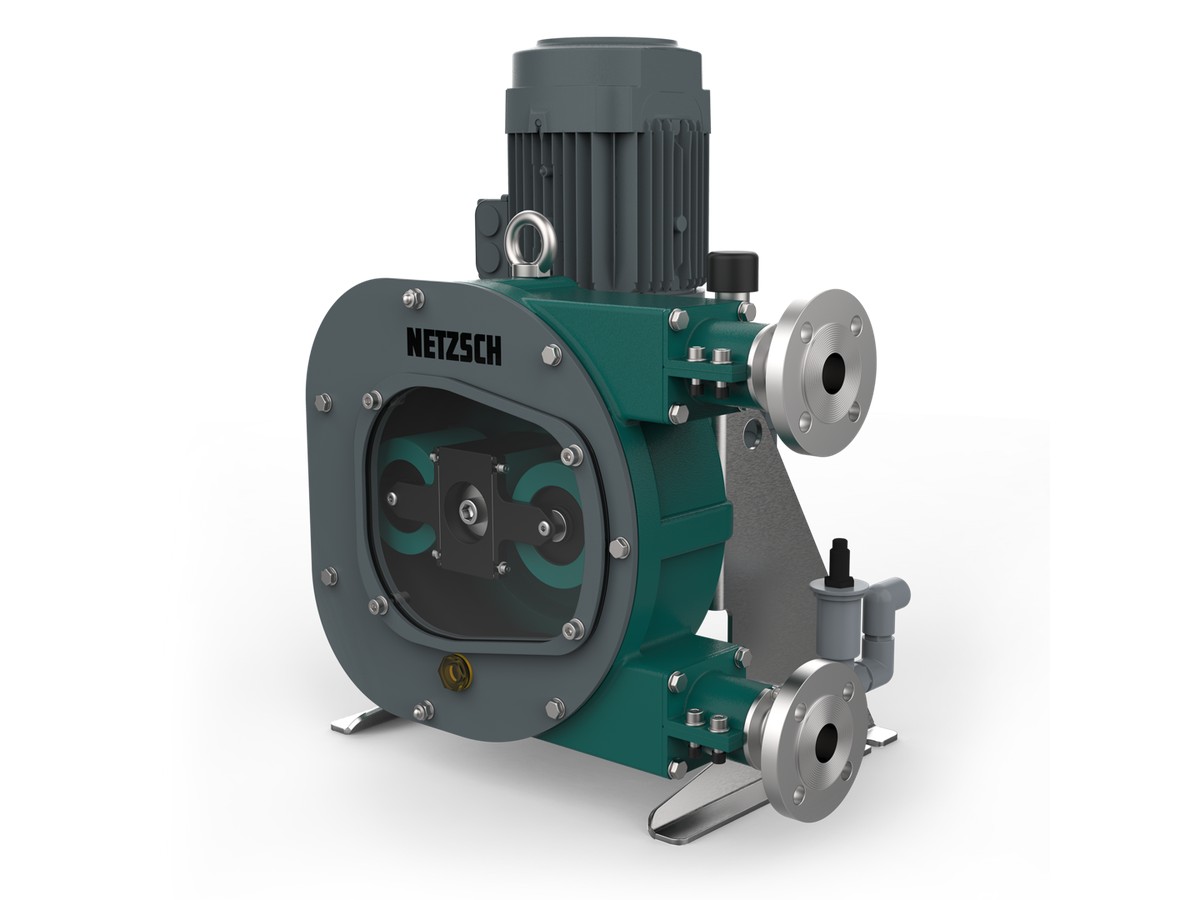

NETZSCH PERIPRO® Hose Pump Chemical Version

Pump

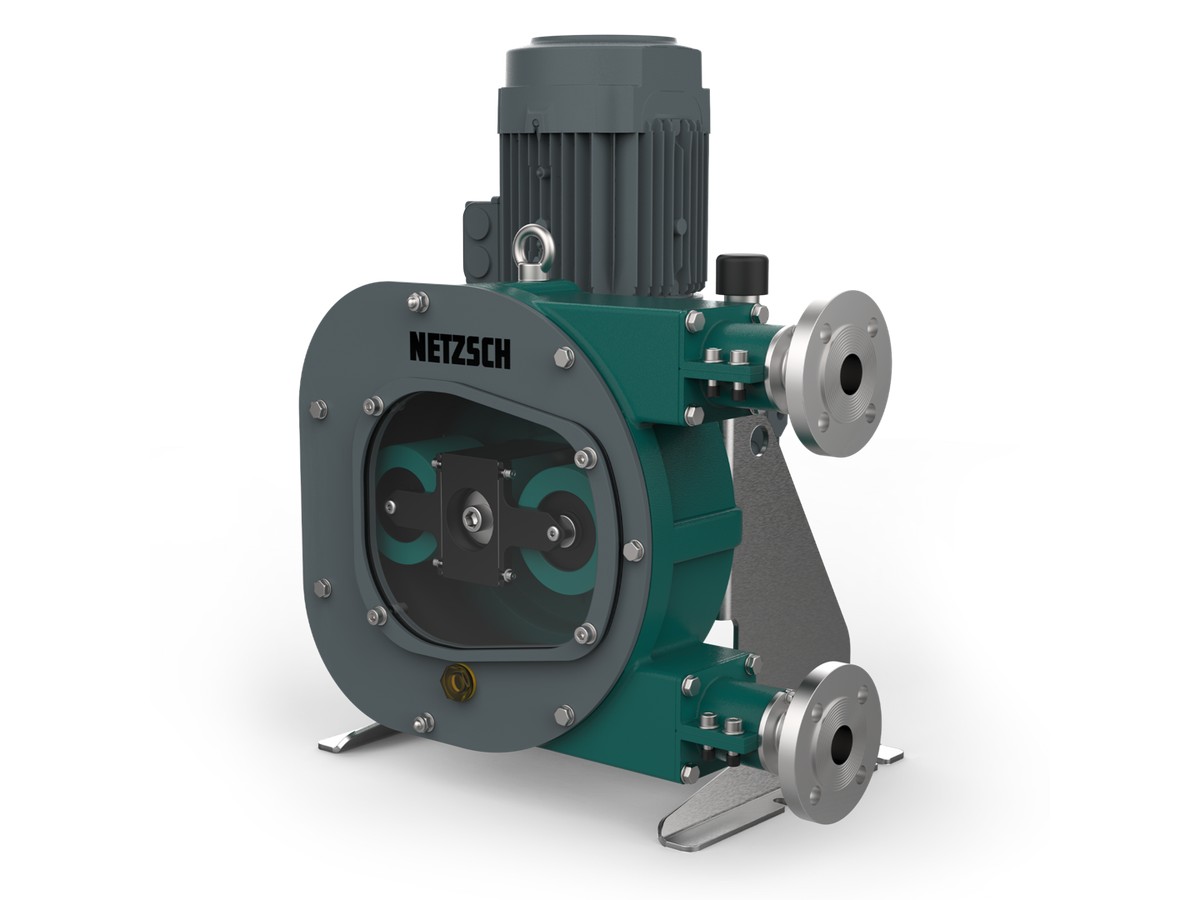

NETZSCH PERIPRO® Hose Pump Industrial Version
