Magnetic Drive Pumps

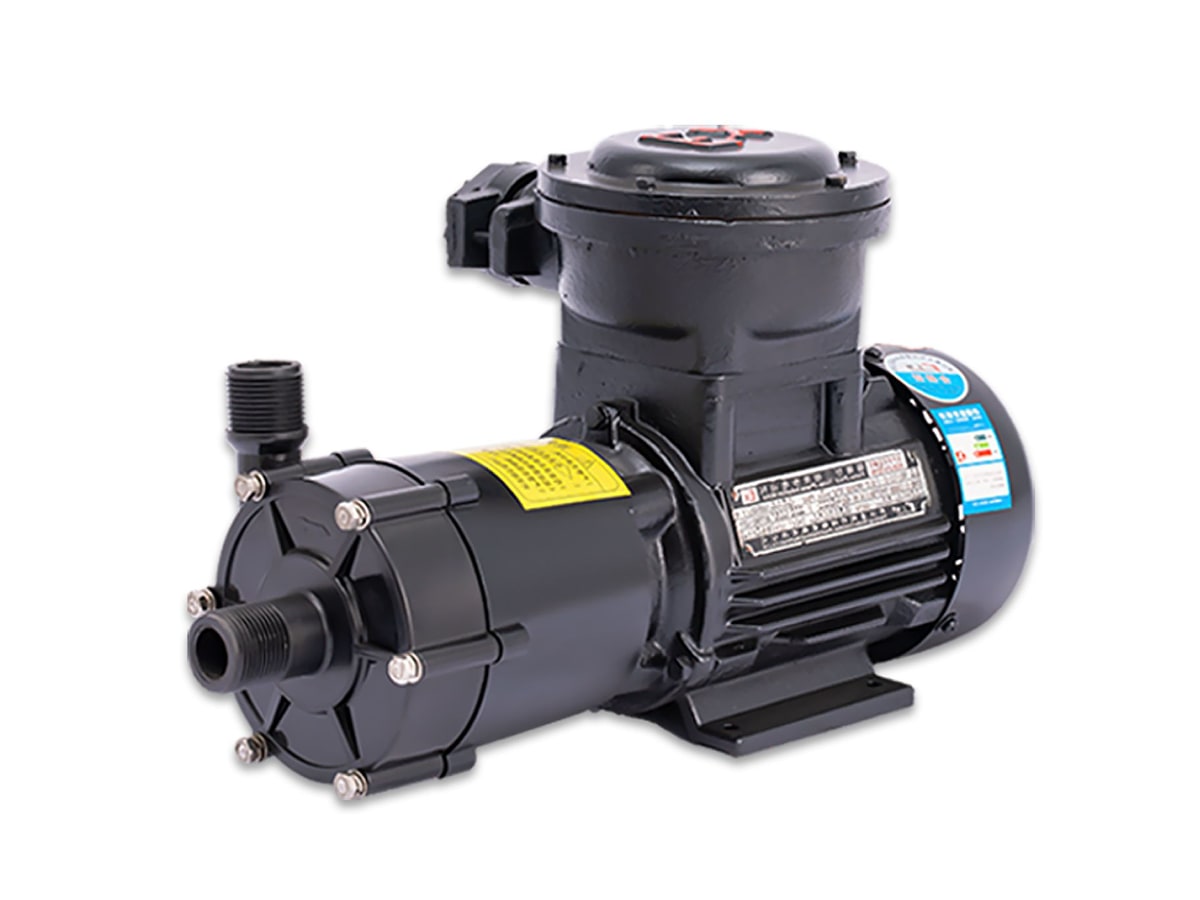

GEMO CQ Engineering Plastic Magnetic Pump
GEMO magnetic drive pump. magnetic drive, sealless
Max flow
1.2–50 m³/h
Max pressure
—
Turndown / accuracy
—
Wetted materials
engineering plastic
Protection
—
Power
—
Features
- Corrosion & abrasion resistant
- Magnetic coupling, sealless
- For corrosive / flammable / toxic fluids
- Compact, smooth, easy maintenance
Specifications
| Wetted material | engineering plastic |
| Drive | — |
| Brand | GEMO |
| Flow range | 1.2–50 m³/h |
| Max head | 50 m |
Applications
Materials & media
| Wetted material | engineering plastic |
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
Control options are listed in notes or confirmed on inquiry.
Models & specs
| Model | Flow | Notes | |
| 14CQ-5F | 1.2 m³/h | head 5m; power 0.12kW; inlet DN14 | |
| 16CQ-8F | 1.5 m³/h | head 8m; power 0.12kW; inlet DN16 | |
| 32CQ-15N | 6.6 m³/h | head 25m; power 1.5kW; inlet DN32 | |
| 32CQ-15 | 6.6 m³/h | head 15m; power 1.1kW; inlet DN32 | |
| 40CQ-35 | 10.8 m³/h | head 35m; power 4kW; inlet DN40 | |
| 40CQ-20 | 10.8 m³/h | head 20m; power 2.2kW; inlet DN40 | |
| 50CQ-50 | 14.4 m³/h | head 50m; power 7.5kW; inlet DN50 | |
| 50CQ-35N | 14.4 m³/h | head 40m; power 5.5kW; inlet DN50 | |
| 50CQ-35 | 14.4 m³/h | head 40m; power 4kW; inlet DN50 | |
| 65CQ-35 | 27 m³/h | head 35m; power 7.5kW; inlet DN65 | |
| 65CQ-25 | 27 m³/h | head 25m; power 5.5kW; inlet DN65 | |
| 16CQ-8 | 30 L/min | head 8m; inlet DN16 | |
| 80CQ-35 | 50 m³/h | head 35m; power 11kW; inlet DN80 | |
| 80CQ-20 | 50 m³/h | head 20m; power 7.5kW; inlet DN80 | |
| 20CQ-12 | 50 L/min | head 12m; inlet DN20 | |
| 32CQ-25 | 110 L/min | head 25m; inlet DN32 | |
| 25CQ-15 | 110 L/min | head 15m; inlet DN25 | |
| 40CQ-32 | 180 L/min | head 35m; inlet DN40 | |
| 40CQ-25 | 180 L/min | head 25m; inlet DN40 | |
| 50CQ-40 | 220 L/min | head 40m; inlet DN50 | |
| 50CQ-25 | 240 L/min | head 25m; inlet DN50 | |
| 80CQ-25 | 850 L/min | head 25m; inlet DN80 |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
Downloads
Related / accessories
Pump

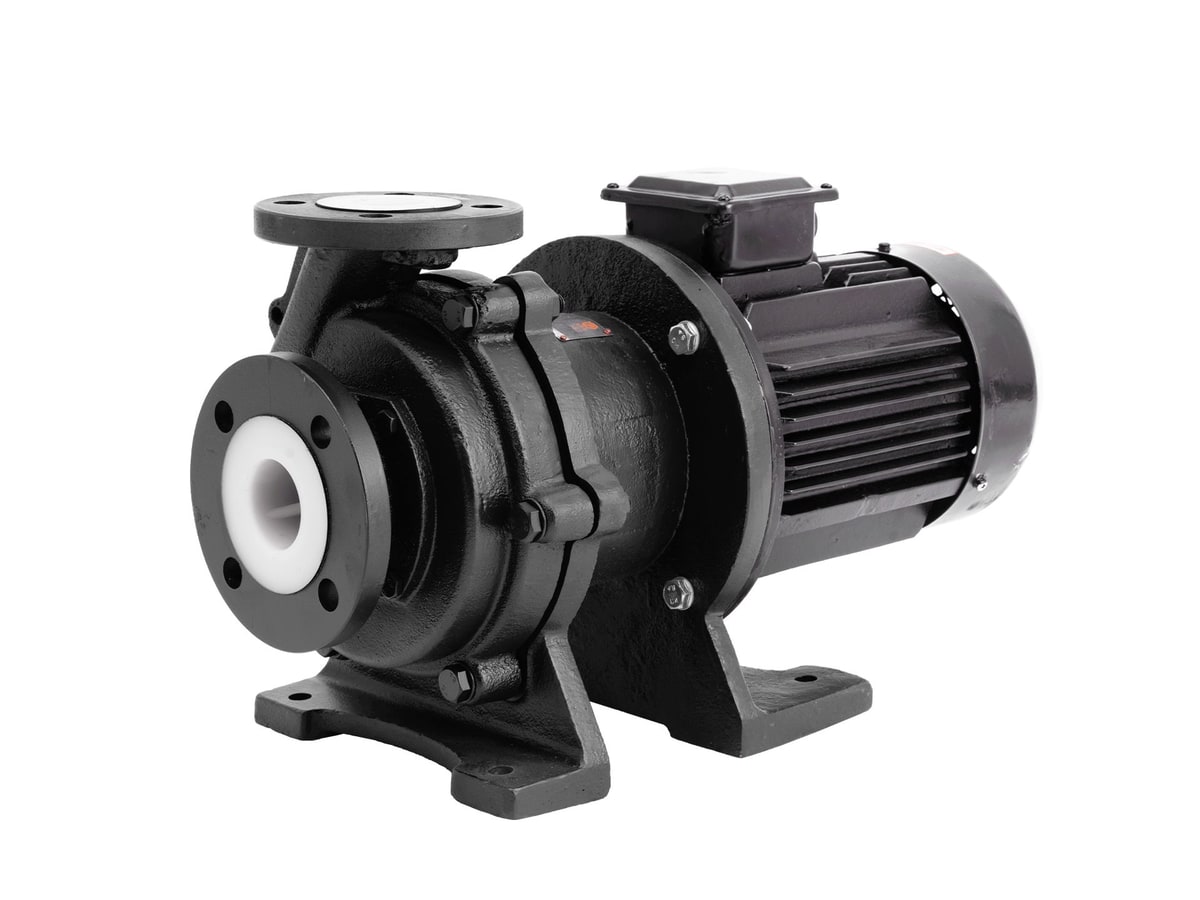

GEMO CQB-F Fluoroplastic Magnetic Pump
Pump

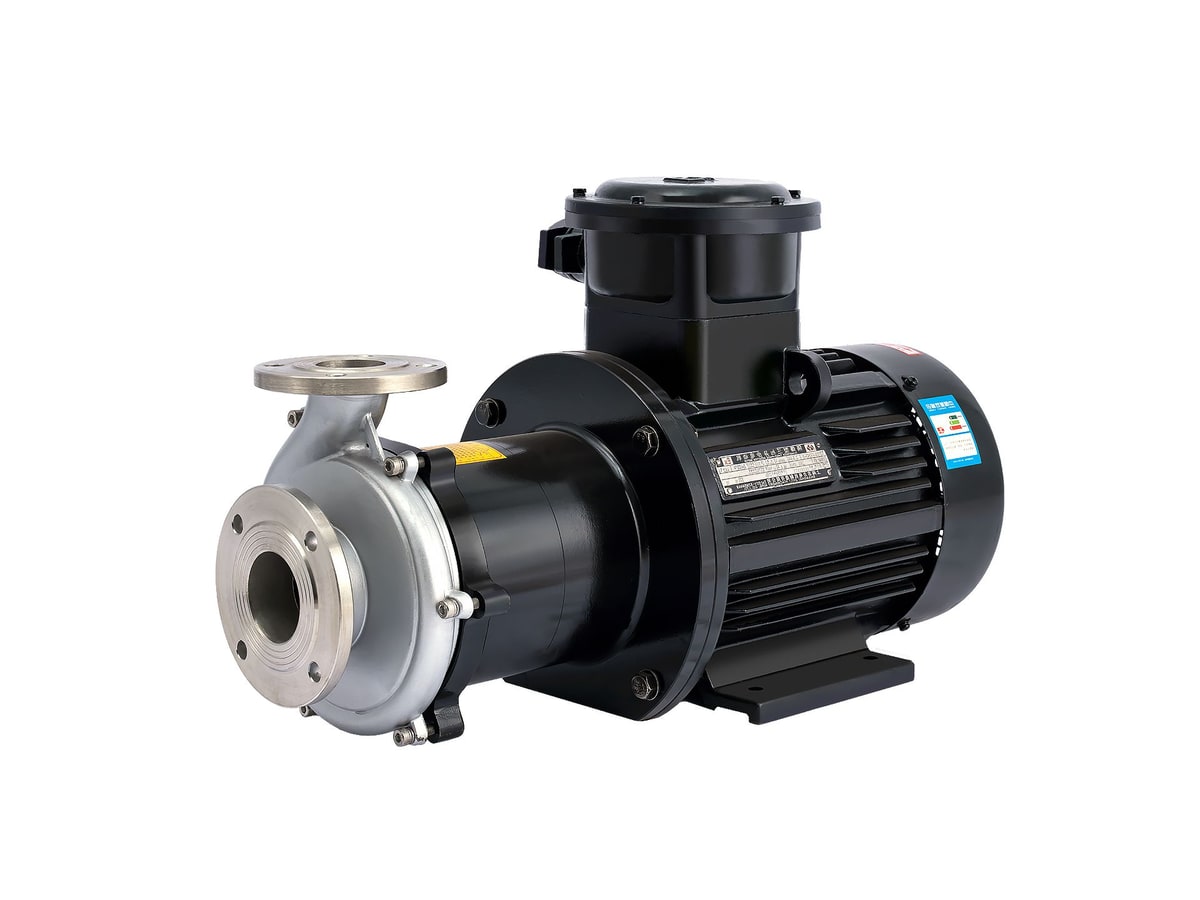

GEMO CQ SS304 Magnetic Pump
