Digital Metering Pumps

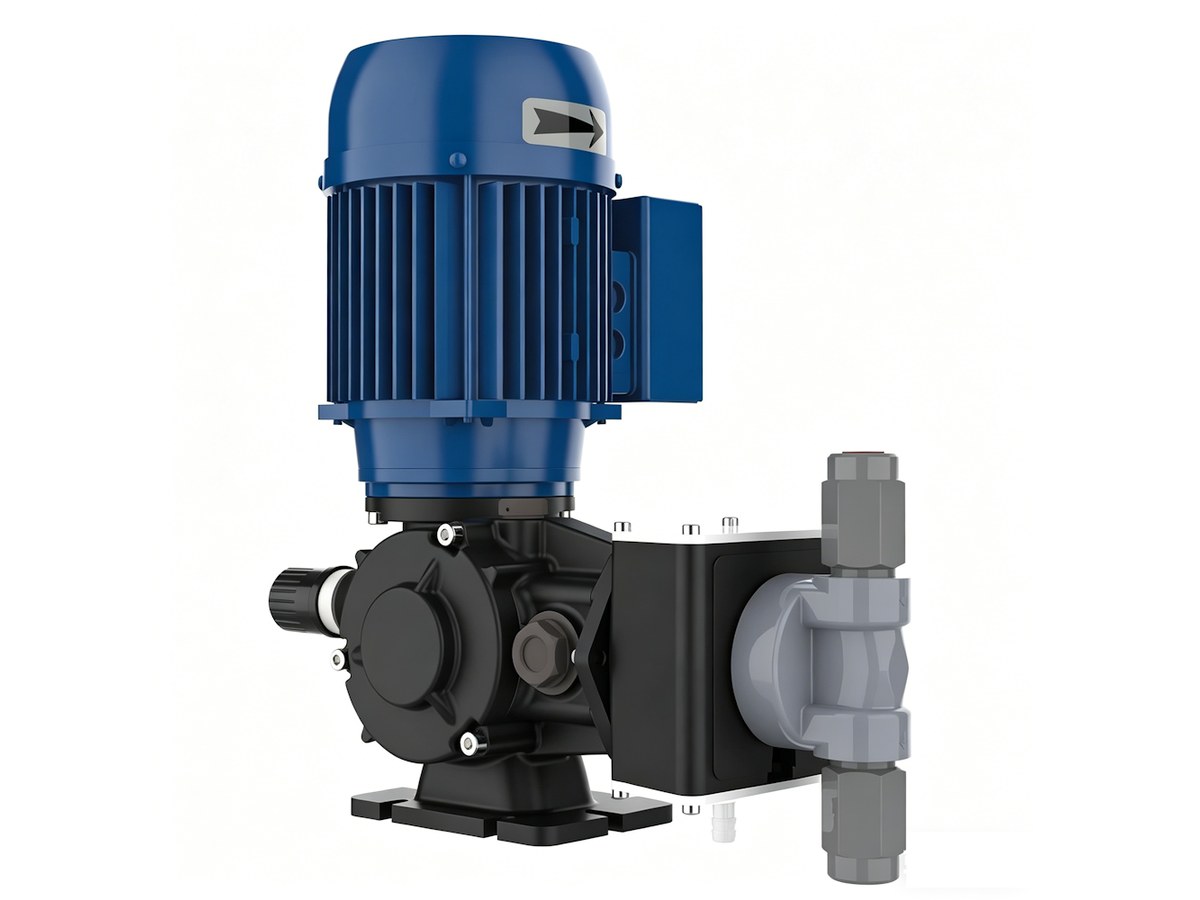

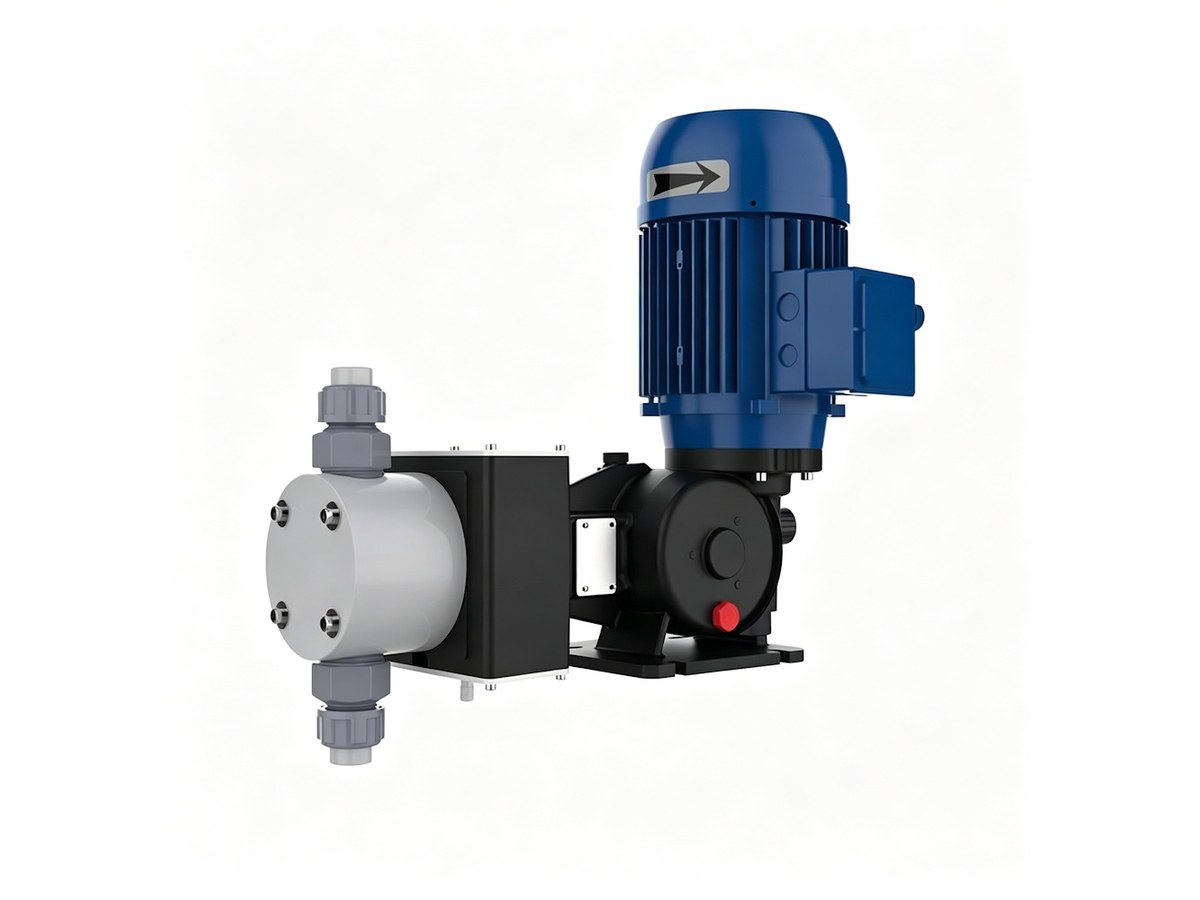

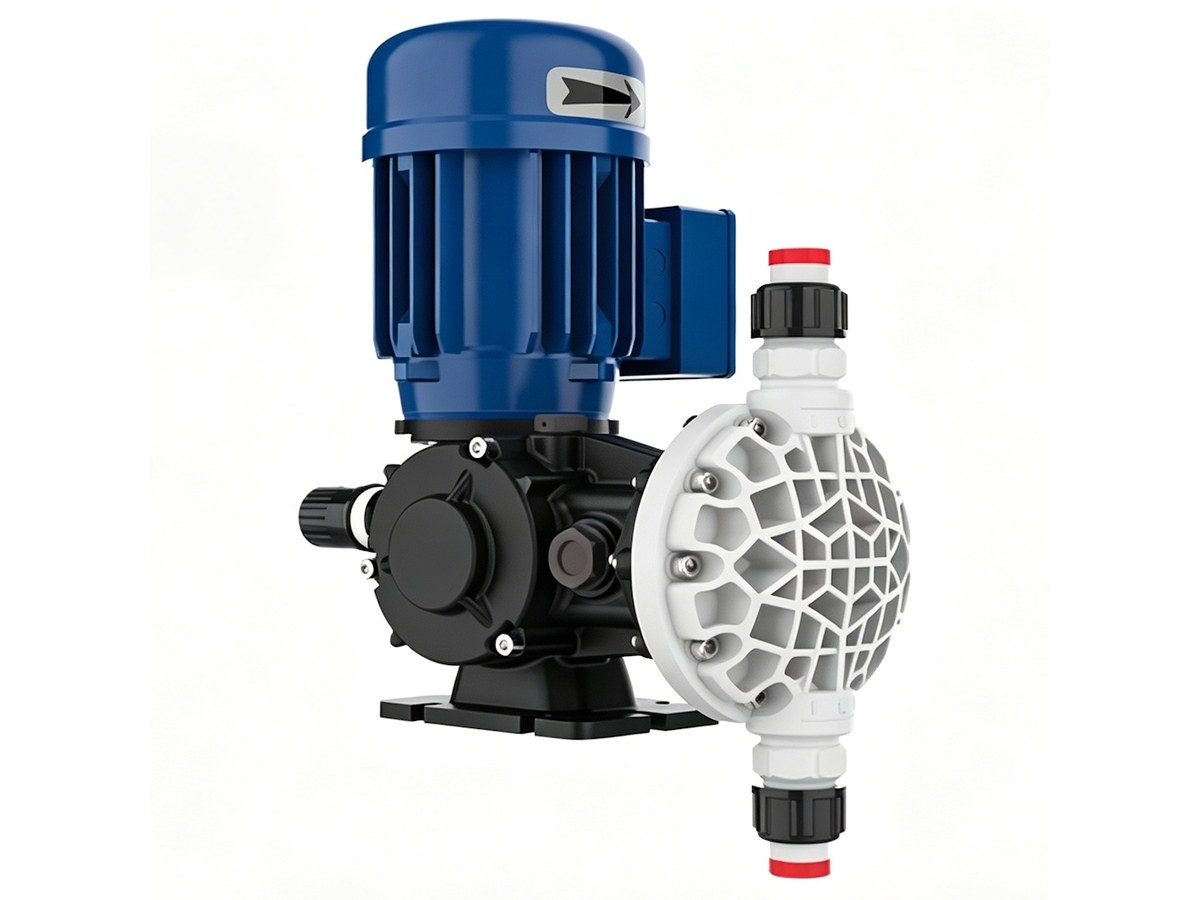

SEKO Elektra Series Digital Metering Pumps
Standalone SEKO digital metering pump series: Elektra digital controller on Spring hydraulics, IoT remote setup/monitoring, timer/batch/analog/digital modes. Hydraulics cover Spring PS1/PS2/MS1/MSA; ~1.5–1000 L/h, max 20 bar.
Max flow
1.5 – 1000 L/h (Spring dimensions)
Max pressure
20 bar (Spring dimensions)
Turndown / accuracy
—
Wetted materials
—
Protection
—
Power
—
Features
- Modes: timer, batch, manual, auto (analog/digital, 1:N / N:1)
- Color status display (red/yellow/green)
- IoT: SekoWeb / app remote; onboard hotspot
- Live & historical data with alarms
- Manual stroke + digital motor-frequency control
- External signal connectors without opening cover
- Hydraulics shared with Spring series — select by Spring size
Specifications
| Flow | 1.5 – 1000 L/h (Spring dimensions) |
| Max pressure | 20 bar (Spring dimensions) |
| Control platform | Elektra digital controller + Spring |
| Connectivity | Wi-Fi / SekoWeb / Modbus |
| Brand | SEKO |
| Type | digital metering pump (Elektra controller) |
Applications
Materials & media
Ask for wetted-parts details or check the brochure.
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
| Control platform | Elektra digital controller + Spring |
| Connectivity | Wi-Fi / SekoWeb / Modbus |
| Type | digital metering pump (Elektra controller) |
Models & specs
| Model | Flow | Pressure | Power | Notes | |
| Elektra-PS1 | 1.5–304 L/h | max. 20 bar | Spring PS1 | hydraulic follower Spring PS1 all models; add-on Elektra digital controller | |
| Elektra-PS2 | 40–1000 L/h | max. 20 bar | Spring PS2 | hydraulic follower Spring PS2 all models; add-on Elektra digital controller | |
| Elektra-MS1 | 5.5–1200 L/h | max. 10 bar | Spring MS1 | hydraulic follower Spring MS1 all models; add-on Elektra digital controller | |
| Elektra-MSA | 10–120 L/h | max. 5 bar | Spring MSA | hydraulic follower Spring MSA; optional with Elektra |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
