Multi-Parameter Analyzers

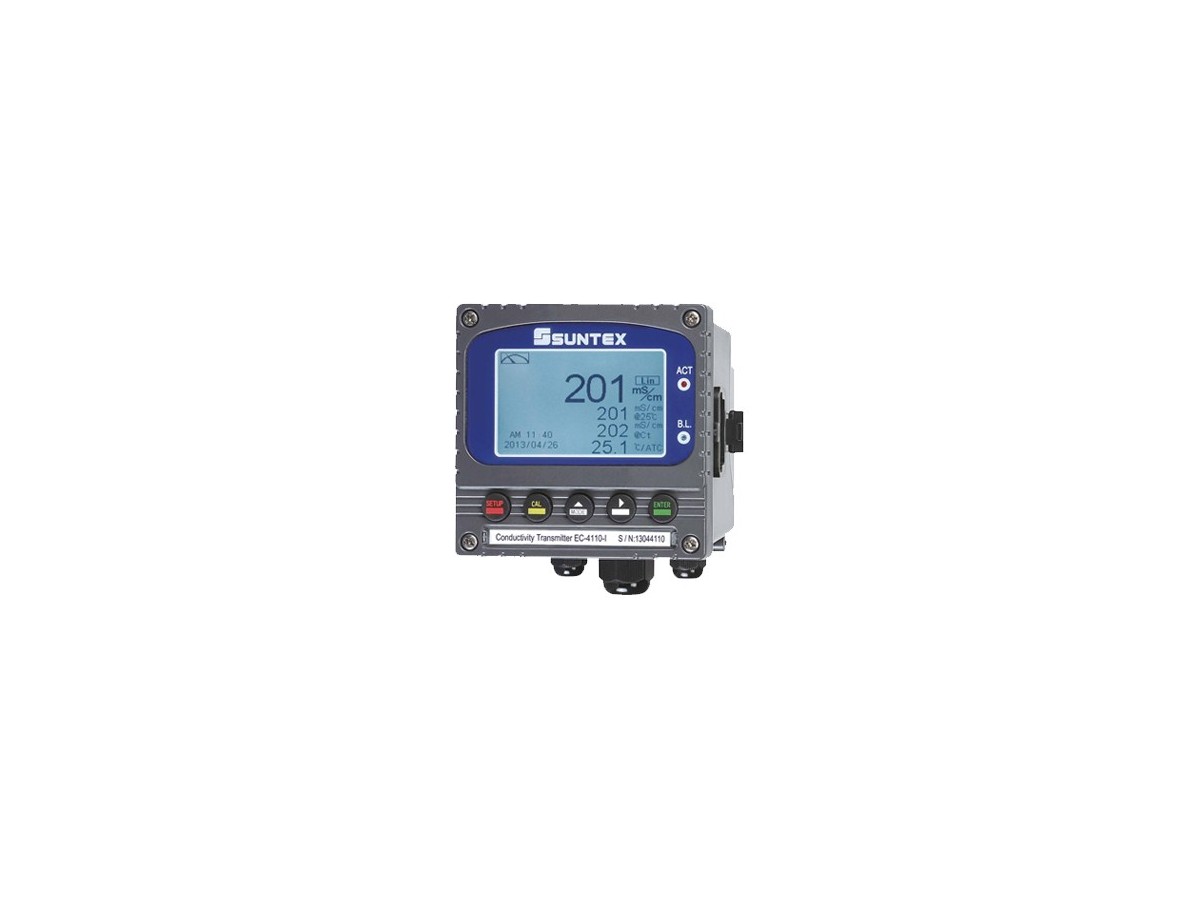

Suntex EC-4110RS Intelligent Conductivity/Resistivity Transmitter
Suntex EC-4110RS Intelligent Conductivity/Resistivity Transmitter. Official Suntex water-quality instrument.
Max flow
—
Max pressure
—
Turndown / accuracy
—
Wetted materials
—
Protection
IP65
Power
100~240VAC，50/60Hz
Features
- 96×96 microprocessor conductivity/resistivity transmitter
- Chinese/English UI
- Outdoor waterproof design for wall, panel or pipe mounting
- Large graphic LCM display with light-sensing backlight
- Clear graphic display with guided menus for easy operation
- Adjustable cell constant 0.008–19.99 cm⁻¹
- Works with 2-electrode / 4-electrode conductivity or resistivity sensors
- Linear and non-linear temperature coefficient compensation
- Manual/automatic calibration, temperature compensation and last calibration record
- password + key combo for setup/calibration
- EC-4110: two 0/4–20 mA outputs for conductivity/resistivity and temperature
- One 0/4–20 mA output plus RS-485 interface
Specifications
| Brand | Suntex |
| Model | EC-4110RS |
| Category | water analyzer |
| Temperature | -30.0～130.0℃ |
| Conductivity Range | 0.00μs/cm ~200.0 mS/cm manual or 2-channel isolated 0/4~20m |
| Resistivity Range | 0.00 MΩ.cm～20.00 MΩ.cm EC-4110RS |
| Protection | IP65 |
| Power | 100~240VAC，50/60Hz |
| Dimensions | 96mm×96mm×132mm(H×W×D) |
| Communication | RS-485 Modbus |
| Analog Output | channels 0/4~20mA |
| Feature | 96x 96 microprocessor conductivity / resistivity transmitter |
| Feature | Chinese/English interface |
Applications
Materials & media
Ask for wetted-parts details or check the brochure.
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
| Communication | RS-485 Modbus |
| Analog Output | channels 0/4~20mA |
Models & specs
| Model | Notes | |
| EC-4110RS | RS-485 Modbus |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
