Small Metering Pumps

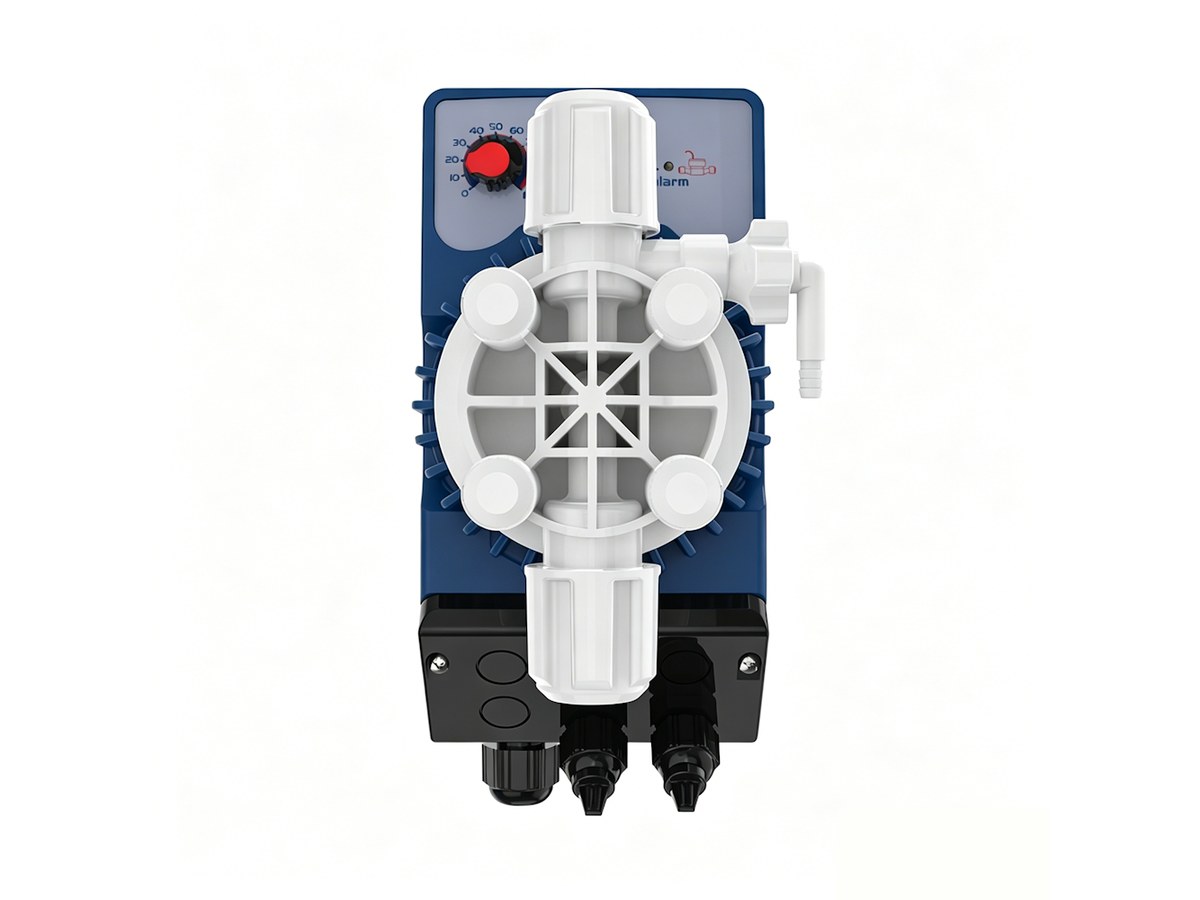

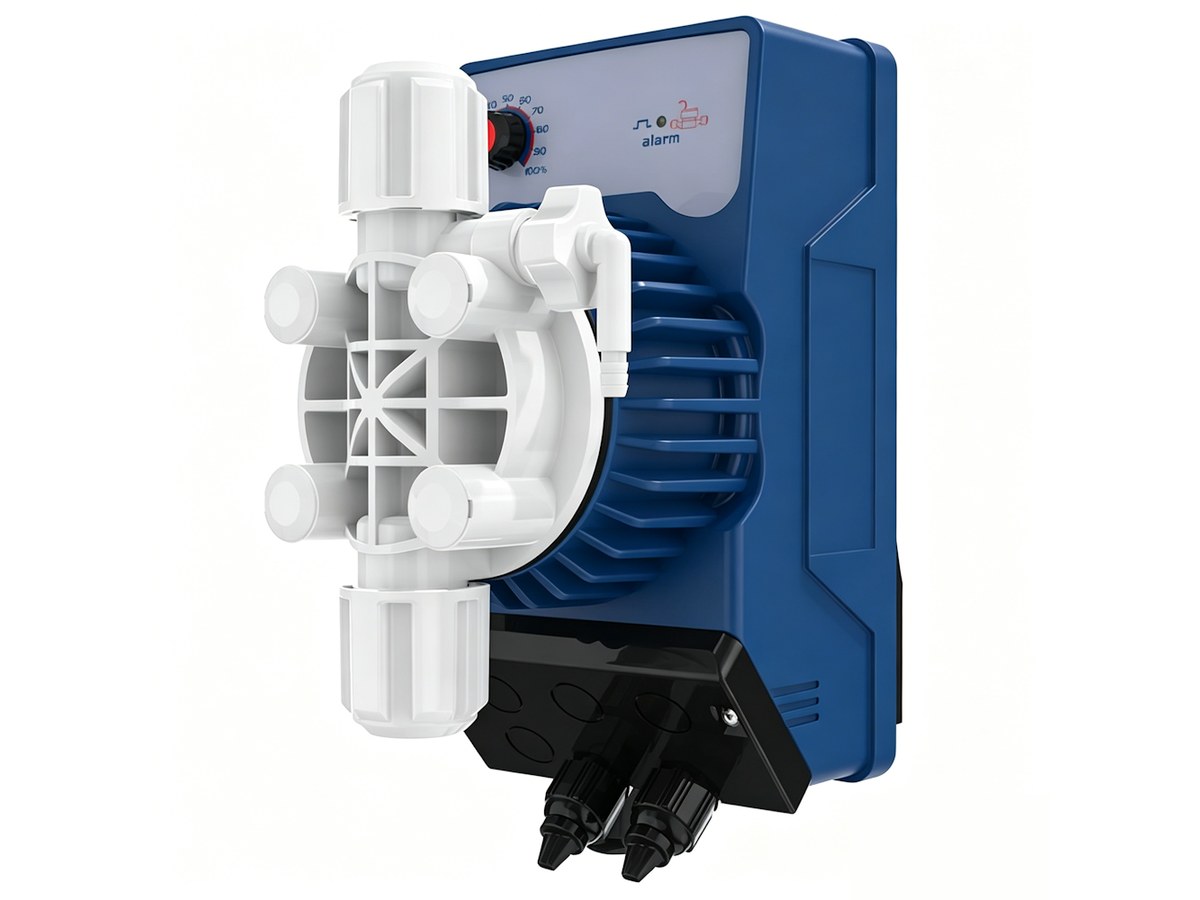

SEKO Kompact Compact Solenoid Diaphragm Pump
Cost-effective compact vertical/wall solenoid pump (AMS/AML/AMC/AMM). Flow 1–9 L/h, max 10 bar. PVDF head + 5-year PTFE diaphragm.
Max flow
1 – 9 L/h
Max pressure
10 bar
Turndown / accuracy
—
Wetted materials
PVDF / PTFE / EPDM|FPM / ceramic
Protection
—
Power
100–240 Vac, 50/60 Hz
Features
- AMS: manual
- AML: manual + level probe
- AMC: pulse auto/manual
- AMM: 4–20 mA auto/manual
- Standard PVDF head; 5-year PTFE diaphragm
- 100–240 Vac (AMS optional 240 Vac 50 Hz)
Specifications
| Flow | 1 – 9 L/h |
| Max pressure | 10 bar |
| Power supply | 100–240 Vac, 50/60 Hz |
| Wetted parts | PVDF / PTFE / EPDM|FPM / ceramic |
| Mounting | vertical |
| Brand | SEKO |
Applications
Materials & media
| Wetted parts | PVDF / PTFE / EPDM|FPM / ceramic |
Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.
Controls & communication
Control options are listed in notes or confirmed on inquiry.
Models & specs
| Model | Flow | Pressure | SPM | Power | Weight | Tube | Notes | |
| 200 | 3–9 L/h | 2–10 bar | 160 | 12 W | 2.8 kg | 4/6 | duty point: 10bar/3L/h; 8/5; 2/9 | |
| 201 | 1 L/h | 7 bar | 160 | 12 W | 2.8 kg | 4/6 | duty point: 7bar/1L/h |
Dimensions & installation
Dimensional drawings available on request (CAD / PDF).
