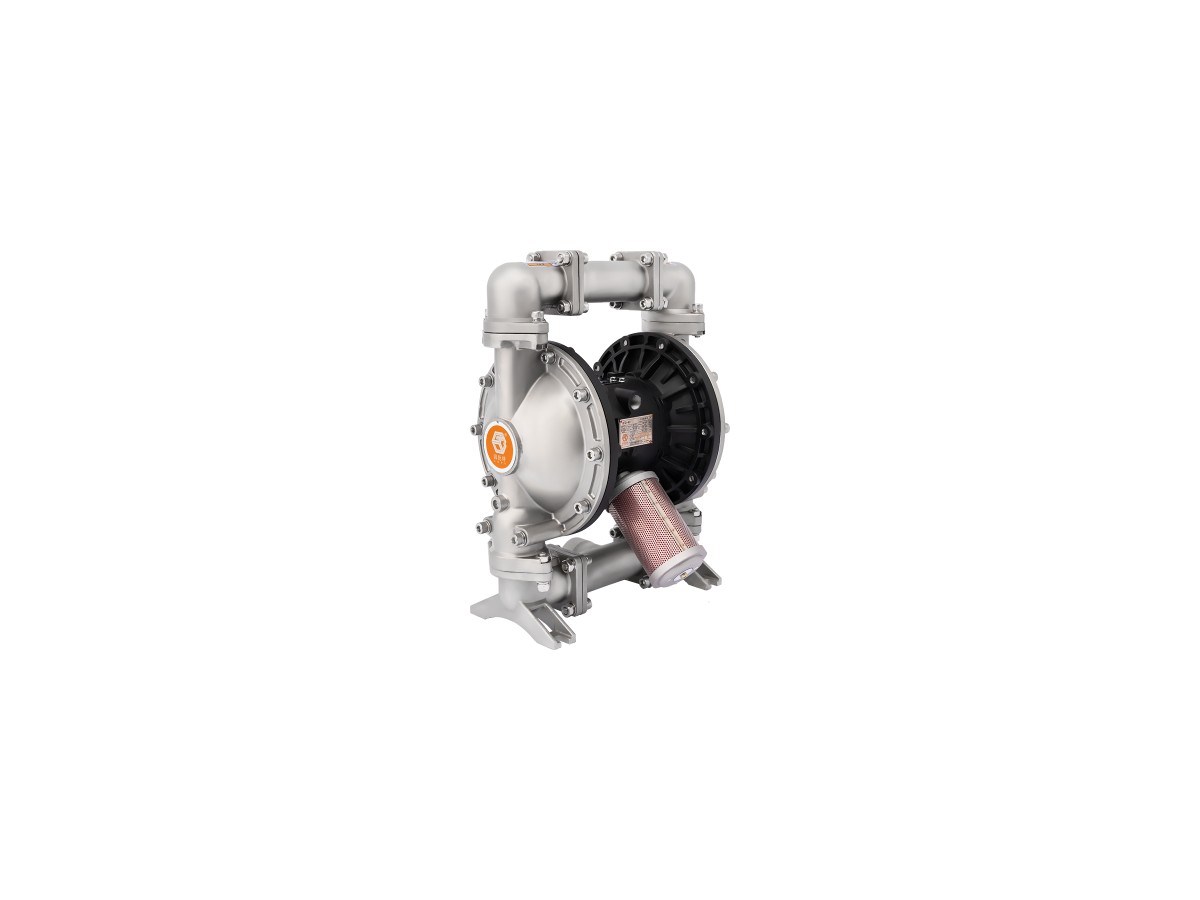

GEMO GDXQ Lithium Battery Pneumatic Diaphragm Pump

GDXQ copper/zinc-free AODD for lithium battery process fluids.

Max flow

1041 L/min

Max pressure

8.4 bar

Turndown / accuracy

—

Wetted materials

—

Protection

—

Power

—

Inquire Now Download datasheetxiongxiaoyang55@gmail.com

Best for: verifying flow/pressure and control interfaces against your dosing duty (Metering Pump). Confirm chemical compatibility and install constraints before ordering — inquire for help.

Features

Copper- and zinc-free wetted parts, suitable for lithium battery materials
Max. flow up to 1041 L/min
Max. outlet pressure 8.4 bar
Strong self-priming; handles media with particles
Materials: PP / PVDF / stainless steel, etc.

Specifications

Series	GDXQ
Drive	pneumatic
Max flow	1041 L/min
Max head	84 m
Max outlet pressure	8.4 bar
Brand	GEMO

Applications

Lithium battery manufacturing

New energy materials

Chemical

Pharmaceutical

Materials & media

Ask for wetted-parts details or check the brochure.

Common chemicals: NaOCl, acids, alkalis, polymers — confirm compatibility when inquiring.

Controls & communication

Control options are listed in notes or confirmed on inquiry.

Models & specs

Model	Flow	Pressure	Notes
GDXQ-25	116 L/min	8.4 bar	max head 84 m; suction lift 5.48 m; size DN25; air inlet 1/2"; particles ≤3.2 mm
GDXQ-40	378.5 L/min	8.4 bar	max head 84 m; suction lift 5.48 m; size DN40; air inlet 1/2"; particles ≤4.8 mm
GDXQ-50	568 L/min	8.4 bar	max head 84 m; suction lift 5.48 m; size DN50; air inlet 1/2"; particles ≤6.4 mm
GDXQ-80	1041 L/min	8.4 bar	max head 84 m; suction lift 2.4–7.6 m; size DN80; air inlet 3/4"; particles ≤9.4 mm
